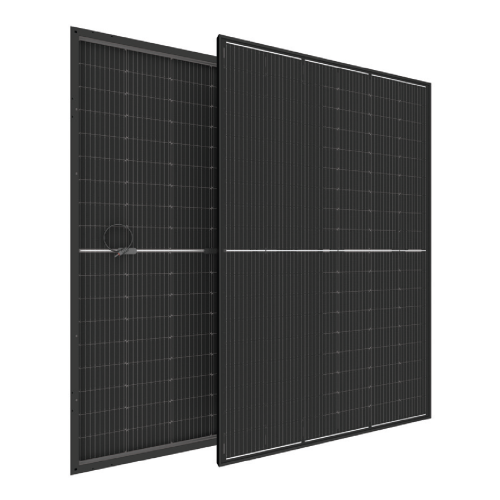

CWT410-108PMB10 410 Wp

$85.89$65.89
  • High Conversion Efficiency
  • Self-Cleaning And Anti-Reflection Glass
  • Outstanding Low Irradiation Glass
  • Excellent Durability
  • 0~+5W Positive Power Tolerance
  • Easy Installation
  • 30 Years Performance Warranty
  • 12 Years Product Warranty
    • Spec Sheet Download

QTY:

Add to Cart

ELECTRICAL CHARACTERISTICS

  • Peak Power (P max)
    410 Wp
  • Module Efficiency (%)
    21.00
  • Maximum Power Voltage (V mp)
    31.39
  • Maximum Power Current (I mp)
    13.07
  • Open Circuit Voltage (V oc)
    37.09
  • Short Circuit Current (I sc)
    14.07
  • Power Tolerance
    0~+5W
  • Maximum System Voltage
    1500V DC
  • Operating Temperature
    -40 ~ +85°C
  • Protection Class
    Class II
  • Maximum Series Fuse Rating
    25A

MECHANICAL SPECIFICATIONS

  • Cell Dimensions(mm/inch)
    182x91 / 7.16x3.58
  • Cells per Module(pcs)
    108 (18x6)
  • Weight(kg/lbs)
    21.0 / 46.30
  • Panel Dimensions(mm/inch)
    1722x1134x30 / 67.80x44.65x1.18
  • Max. Wind/Snow Load(Pa)/(lb/ft2)
    (5400 / 5400) / (112.5 / 212)
  • Junction Box
    IP68
  • Junction Box Cable Length(mm/inch)
    350-1600 / 13.78-63.00
  • Frame Color
    Silver / Black
  • Rear Side Material
    Transparent Backsheet

TEMPERATURE CHARACTERISTICS

  • Temp. Coeff. of (Isc)
    0.040%/°C
  • Temp. Coeff. of (Voc
    -0.270%/°C
  • Temp. Coeff. of (Pmax)
    -0.350%/°C

PACKING CONFIGURATION

  • Container
    40' HQ
  • Pieces per Pallet
    35
  • Pieces Per Container
    910
  • Pallet Per Container
    26
