CWT-FLEX-FBAG-110 110Wp

$85.89$65.89
  • Prism Surface
  • Excellent Light Transmit with ETFE
  • IBC Cell Technology
  • Ultra Lightweight
  • Easy to use
  • Increasable Capacity
  • 2 Years Product Warranty
  • Spec Sheet Download

Description

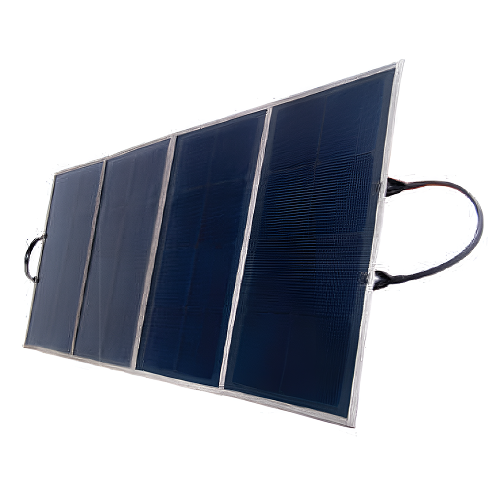

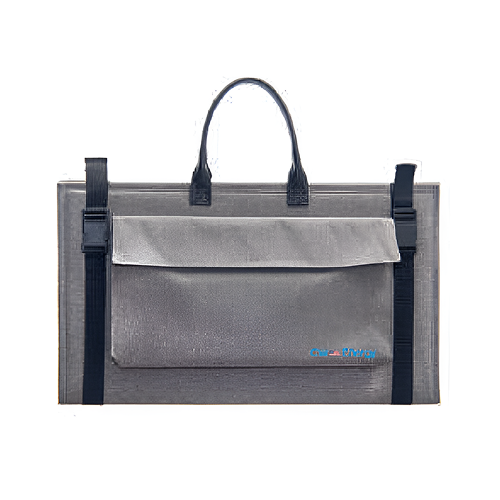

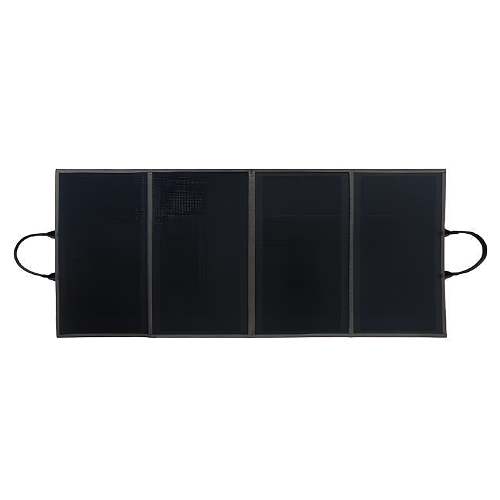

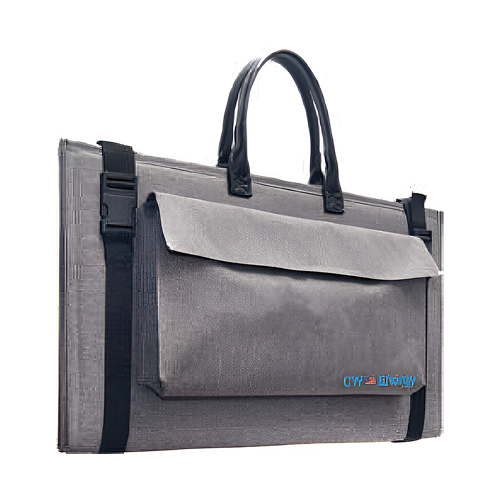

Easy to install, to carry and to use, the CW Enerji foldable solar panel is a powerful companion ready to take you on your next adventure. Designed to withstand harsh operating conditions, the high-performance solar panel offers a practical and reliable solution for emergencies. CW Enerji foldable solar panel, which has high light transmittance ETFE polymer, durable fiberglass sheet and high efficiency IBC solar cell in its structure, is produced in international quality standards with 7-layer high lamination technology. With CW Enerji foldable solar panels, you can charge your phone or tablet directly with USB power output, while at the same time you can get up to 110W instant power output with solar connectors. It is also possible to increase capacity by connecting multiple products together. Models can be customized for your different needs

IBC Solar cells, which are preferred in flexible panels, are a cell type built on a copper base. When bent or left in a humid environment, Cw Enerji Flexible Panels are more resistant to power losses due to breakage and corrosion than conventional solar panels. Cw Enerji Flexible Panels are one of the most important energy solutions for users with the Bypass diodes and efficient cell architecture in low radiation and shade conditions.

ELECTRICAL CHARACTERISTICS

  • Peak Power (P max)
    110 Wp
  • Module Efficiency (%)
    17.5
  • Maximum Power Voltage (V mp)
    18.84
  • Maximum Power Current (I mp)
    5.84
  • Open Circuit Voltage (V oc)
    22.80
  • Short Circuit Current (I sc)
    6.15
  • Power Tolerance
    0~+5W
  • Maximum System Voltage
    1000V DC
  • Maximum Series Fuse Rating
    15A
  • Temp. Coeff. of (Voc)
    -55.68mV/°C
  • Temp. Coeff. of (Pmax)
    -0.29%/°C
  • Temp. Coeff. of (Isc)
    2.9mA/°C
  • Dimensions (Opened/Closed)(mm)
    1265x550x6 / 550x315x24
  • Weight(kg/lbs)
    4
  • Protection Class
    IP68
  • Junction Box Cable Length (mm)
    600
  • Connector
    MC4
  • USB Output
    QC 3.0 Quick Charge 5V-9V-12V
  • Exterior of the Product
    Fabric
