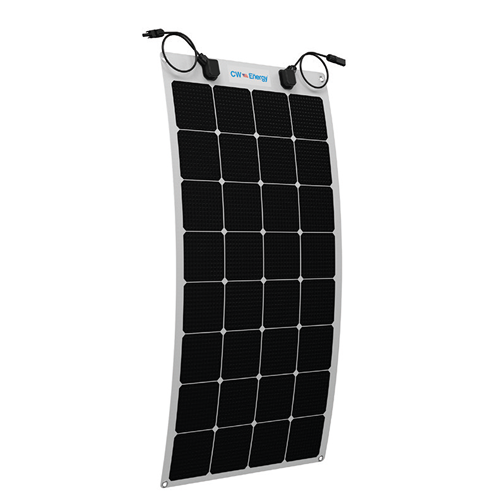

CWT-FLEX-110 110Wp

$85.89$65.89
  • Prism Surface
  • Excellent Light Transmit with ETFE
  • IBC Cell Technology
  • Flexible Design
  • Ultra Lightweight
  • IP68 Protection Class
  • 7 Years Performance Warranty
  • 5 Years Product Warranty
  • Spec Sheet Download

Description

Cw Enerji New Generation Flexible Panel, which has high light transmittance ETFE polymer, durable fiberglass and high efficiency IBC solar cell in its structure, is produced in international quality standards with 7-layer advanced lamination technology. The combination of ETFE and fiberglass sheet makes the panel much more durable. It flexes up to a maximum of 30 degrees and is lightweight, making it a perfect fit for any surface. Available in 110Wp and 170Wp power options, Cw Enerji Flexible Panel Series has the advantage of being used in many application areas such as boats, caravans, roofs and many similar applications. Available in white and black color options, the series has the option of production in different power and size options according to your needs.

IBC Solar cells, which are preferred in flexible panels, are a cell type built on a copper base. When bent or left in a humid environment, Cw Enerji Flexible Panels are more resistant to power losses due to breakage and corrosion than conventional solar panels. Cw Enerji Flexible Panels are one of the most important energy solutions for users with the Bypass diodes and efficient cell architecture in low radiation and shade conditions.

ELECTRICAL CHARACTERISTICS

  • Peak Power (P max)
    110 Wp
  • Module Efficiency (%)
    17.5
  • Maximum Power Voltage (V mp)
    18.84
  • Maximum Power Current (I mp)
    5.90
  • Open Circuit Voltage (V oc)
    22.80
  • Short Circuit Current (I sc)
    6.33
  • Power Tolerance
    0~+5W
  • Maximum System Voltage
    600VDC
  • Maximum Series Fuse Rating
    15
  • Temp. Coeff. of (Voc)
    -55.68mV/°C
  • Temp. Coeff. of (Pmax)
    -0.29%/°C
  • Temp. Coeff. of (Isc)
    2.9mA/°C
  • Dimensions(mm/inch)
    1134x555x3
  • Weight(kg/lbs)
    2.3
  • Protection Class
    IP68
  • Number of ByPass Diodes
    2
